Ring Groups

Overview

Ring groups distribute incoming calls to a set of member extensions. When a call arrives at the ring group number, the system rings the members according to the configured strategy. An optional call queue holds callers when all members are busy, playing hold music and announcements until an agent is available.

Open menu "Cloud PBX > Ring groups" (route: /ring-groups).

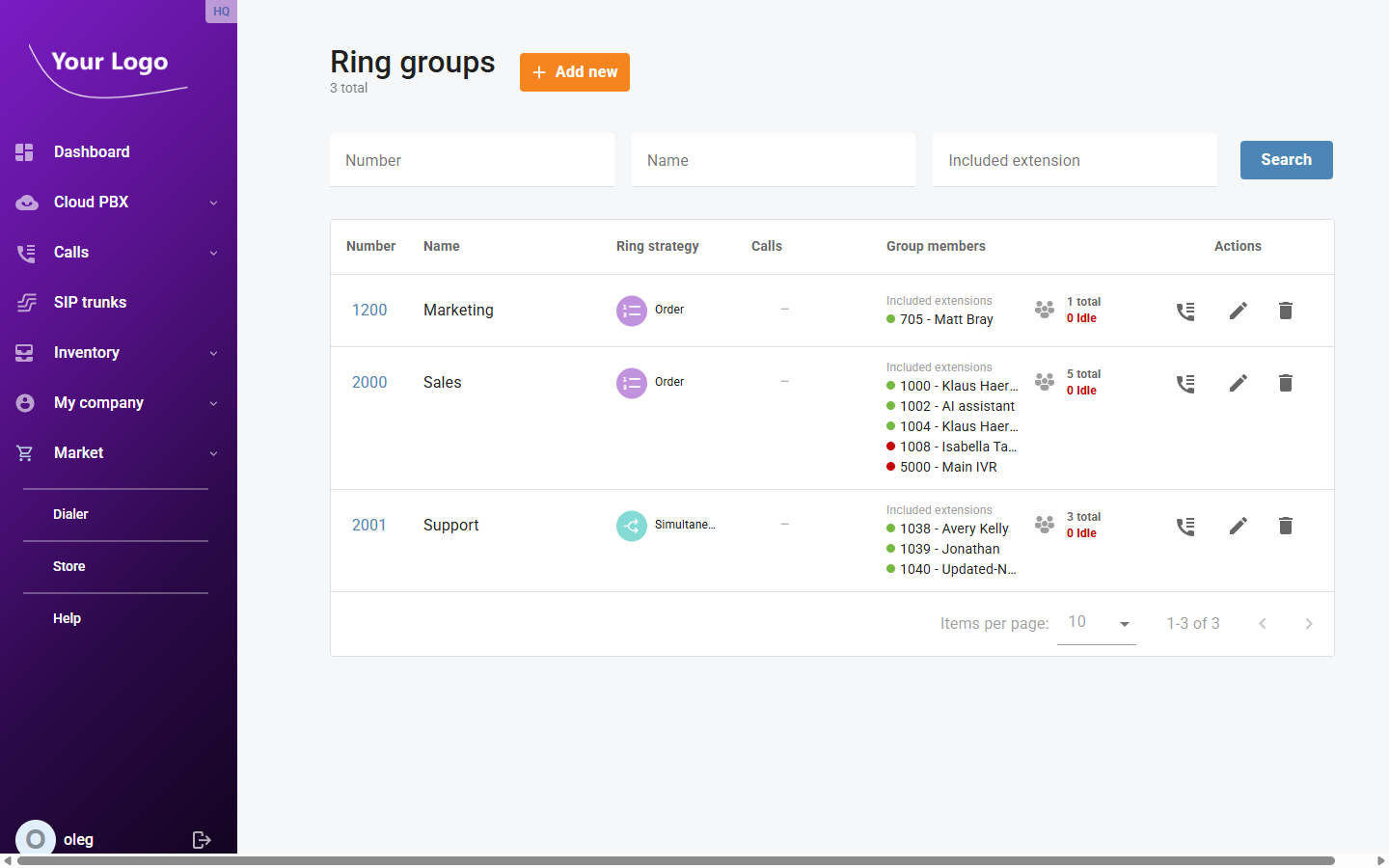

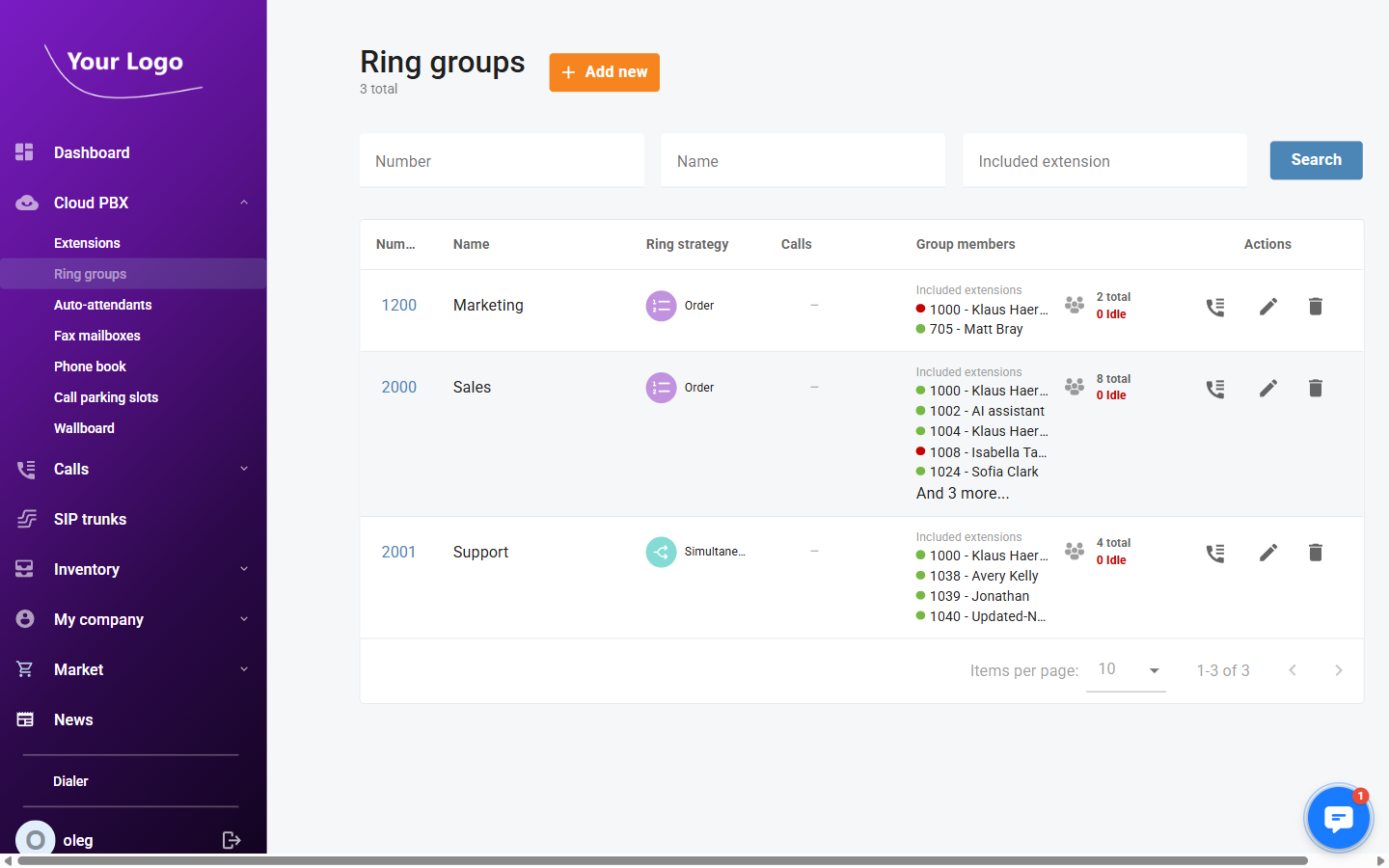

Ring Groups List

Column	Description
Number	The ring group's internal extension number.
Name	The ring group name.
Ring strategy	How member extensions are rung (Order, Random, Simultaneous, or Least used).
Calls	Number of calls currently active in the group.
Group members	Member extensions with colour-coded presence indicators (green = idle, red = busy) and a total/idle count.
Actions	Call history – view the call log; Edit (✏️) – open the ring group; Delete (🗑️) – remove the ring group.

Use the Number, Name, and Included extension filters to search. Click Search to apply.

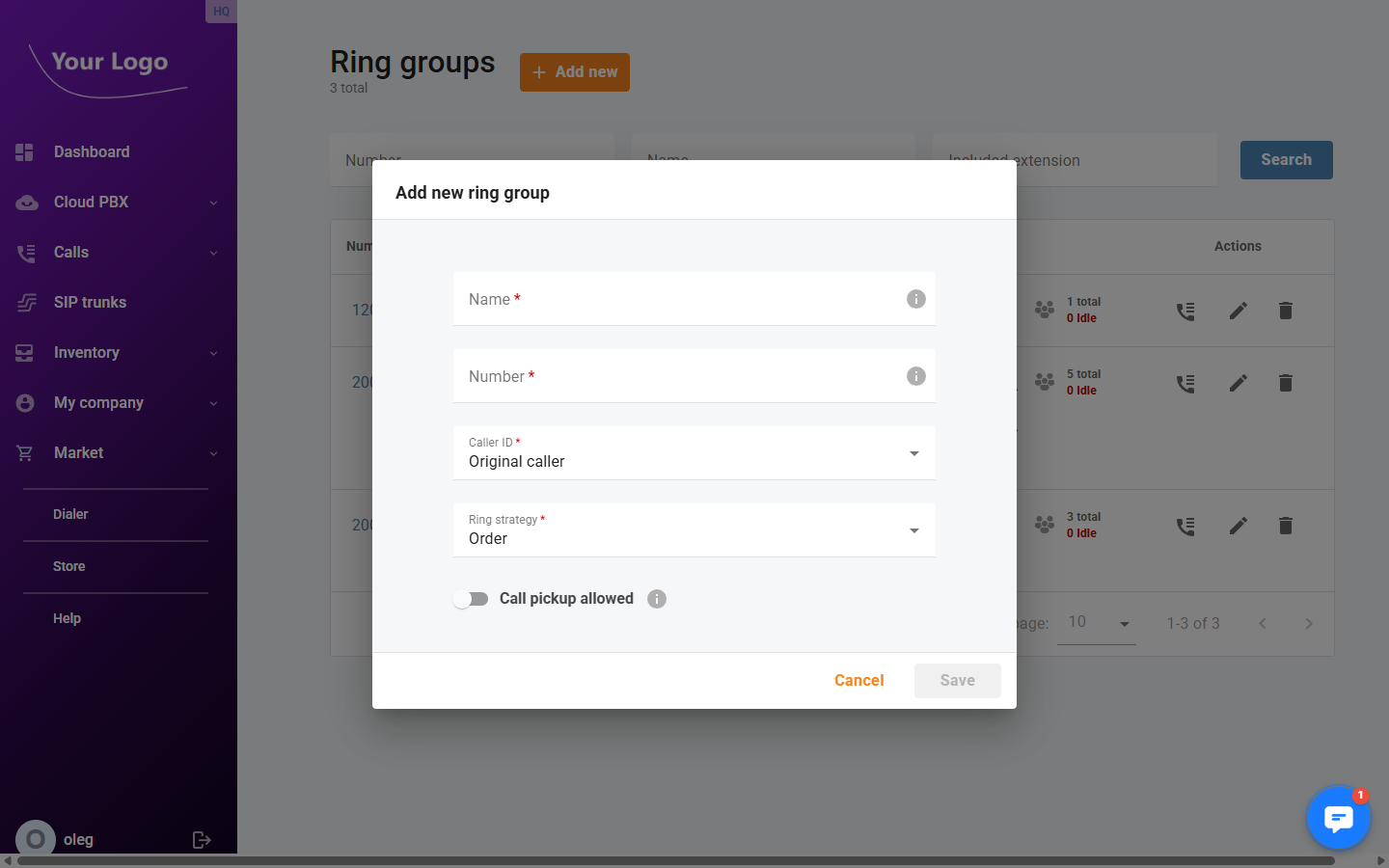

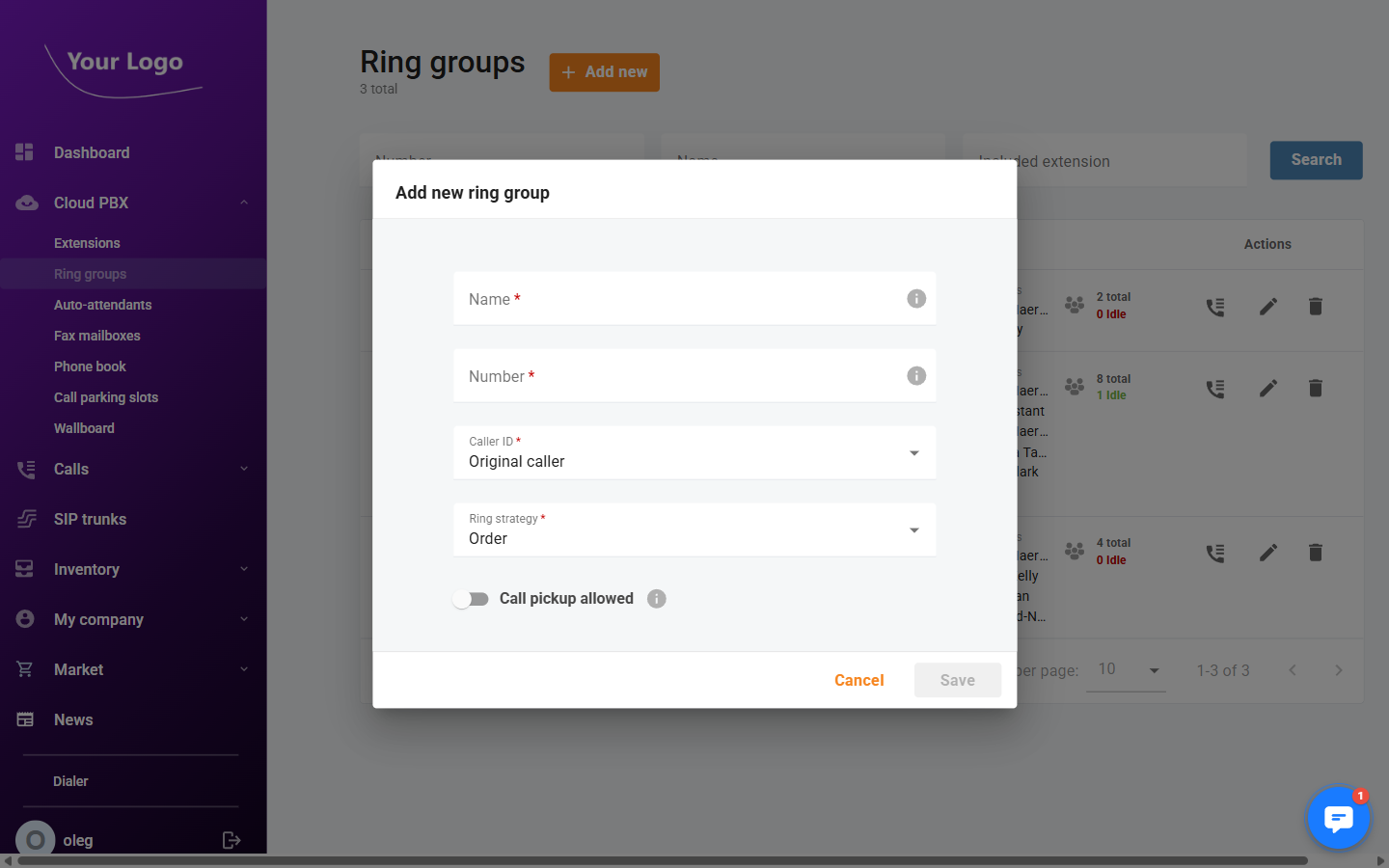

Click + Add new to create a new ring group.

Ring Group Detail

Click Edit to open a ring group. The header shows the ring group number and the active ring strategy. The detail page contains three tabs.

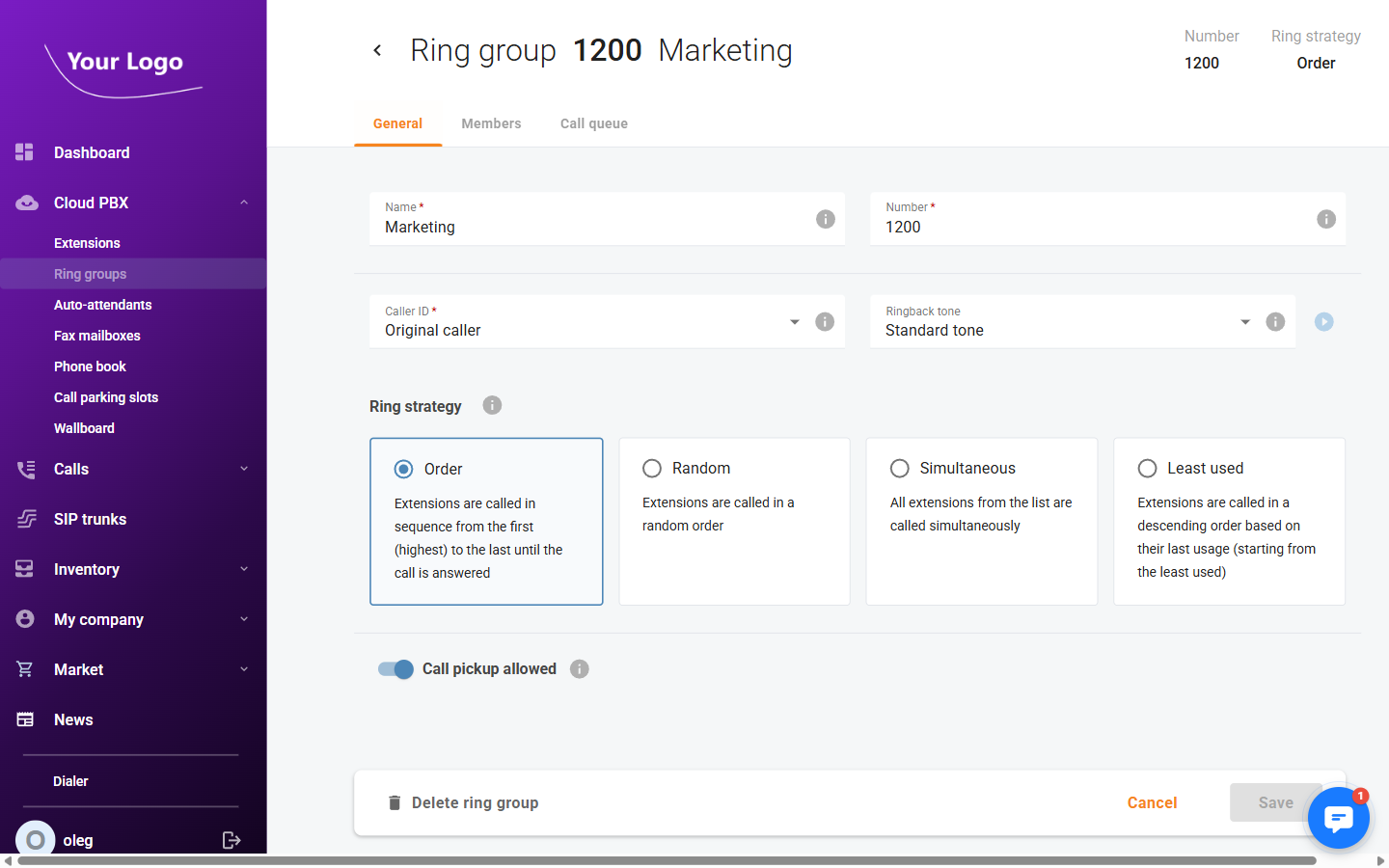

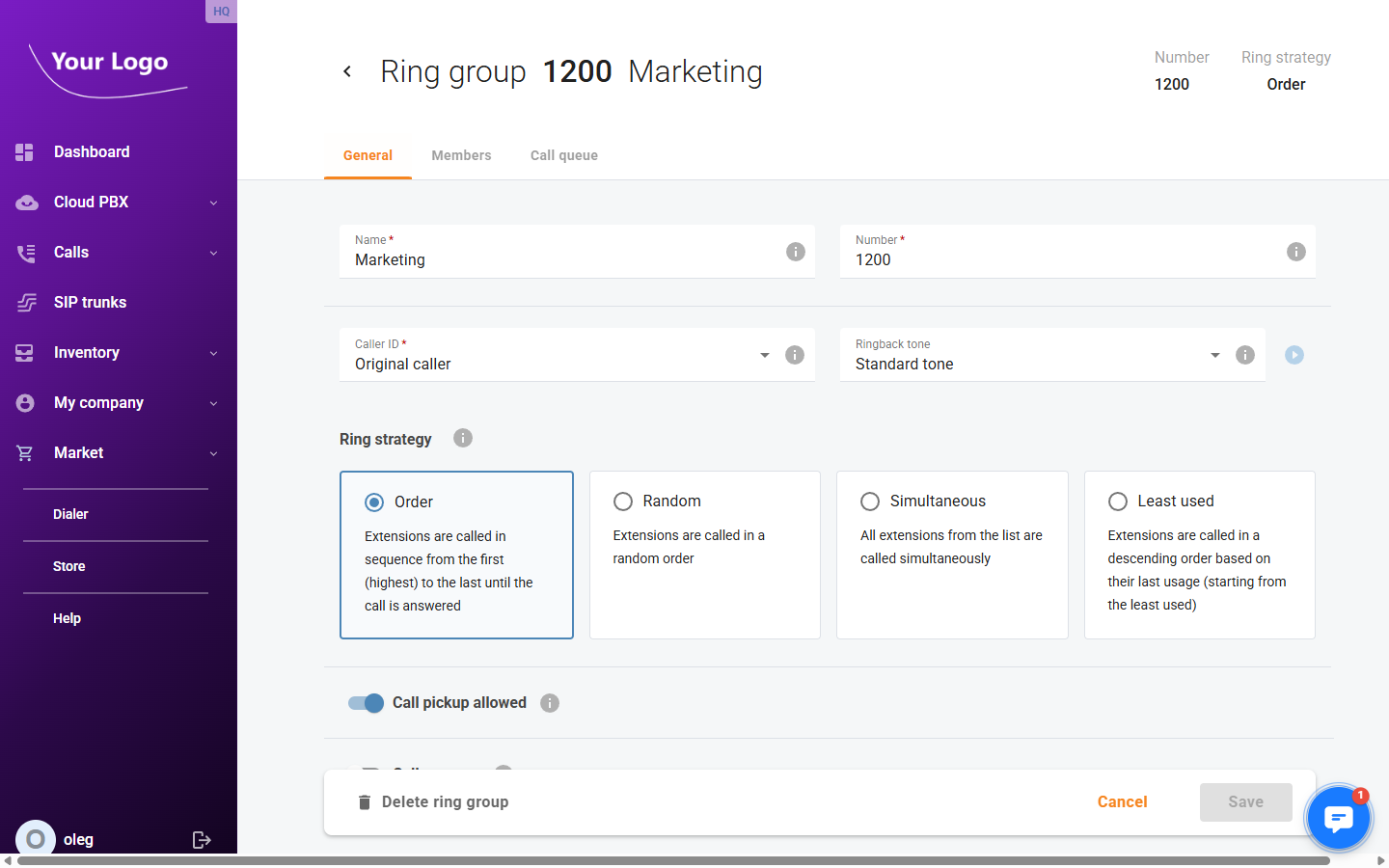

General Tab

Field	Description
Name*	The ring group name.
Number*	The internal number dialled to reach this ring group.
Caller ID*	Controls what caller ID is presented to ring group members when a call arrives (e.g. Original caller).
Ringback tone	The ringback tone played to the caller while waiting for a member to answer (dropdown, with a preview play button).

Ring strategy – Select how member extensions are called:

Strategy	Description
Order	Extensions are called in sequence from the first (highest priority) to the last until the call is answered.
Random	Extensions are called in a random order each time.
Simultaneous	All extensions in the group are called at the same time.
Least used	Extensions are called starting from the one that has been used least recently.

Field	Description
Call pickup allowed	Toggle to allow extensions outside the group to pick up calls ringing in this group.
Call wrap-up	Toggle to enable a post-call wrap-up period, preventing new calls from being dispatched to an agent immediately after a call ends.

Click Save to apply changes.

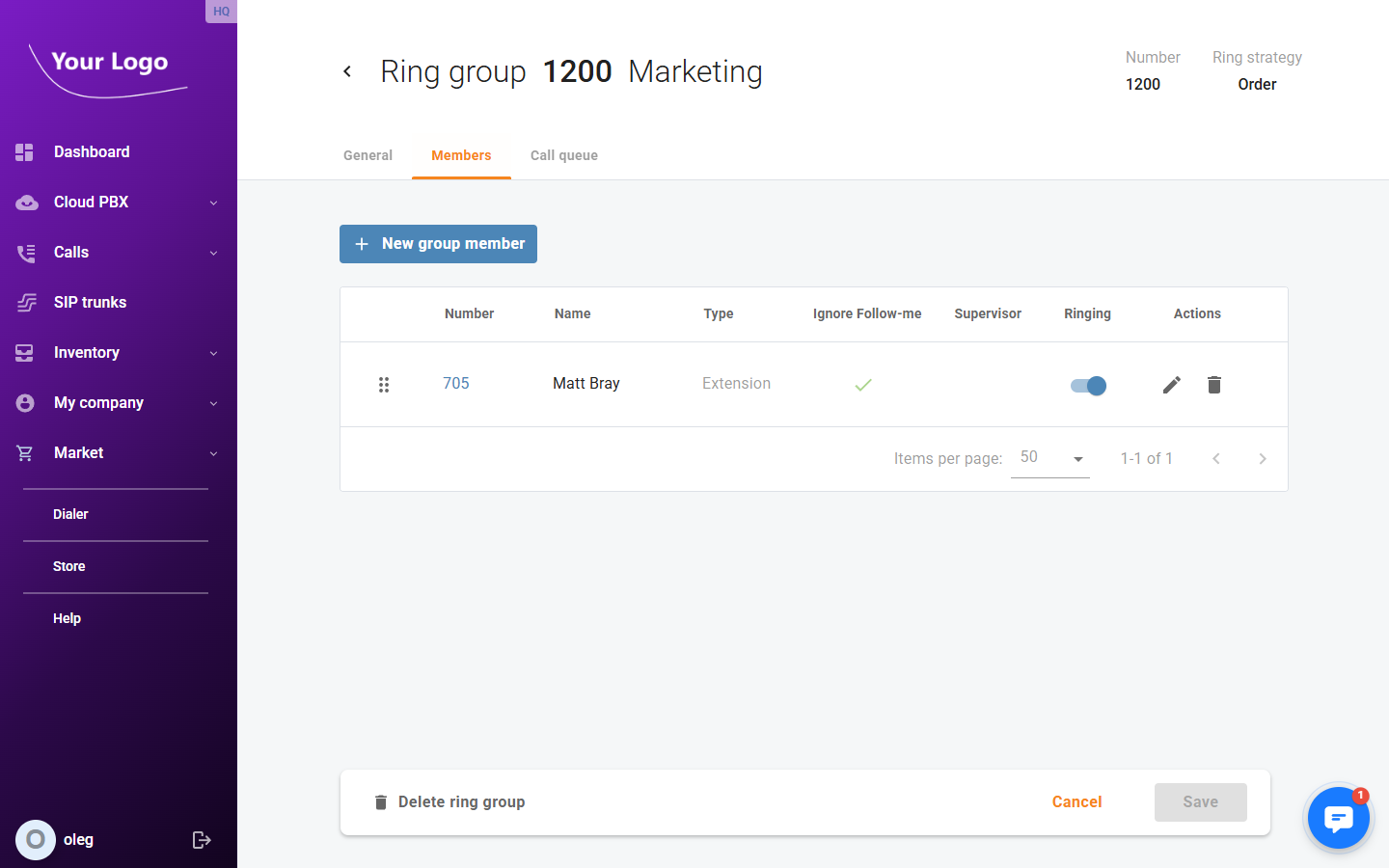

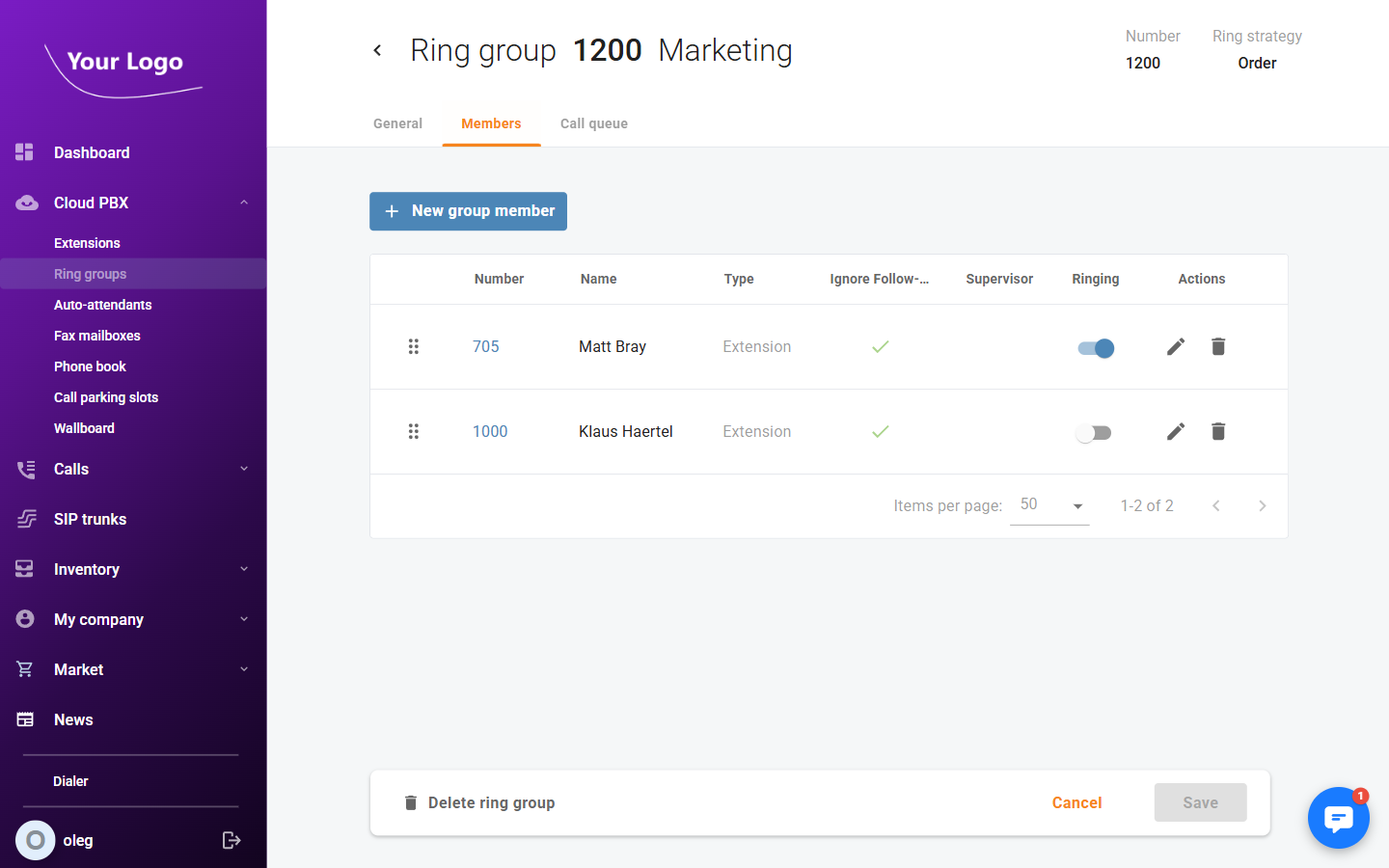

Members Tab

The Members tab lists all extensions assigned to this ring group.

Column	Description
Number	The extension number of the member.
Name	The extension owner's display name.
Type	Member type (e.g. Extension).
Ignore Follow-me	If checked, the member's personal call forwarding (follow-me) rules are bypassed when calls arrive via this ring group.
Supervisor	Marks this member as a supervisor, enabling call monitoring features for the group.
Ringing	Toggle to enable or disable ringing for this member without removing them from the group.
Actions	Edit the member's ring group settings or remove the member from the group.

Click + New group member to add an extension to the ring group.

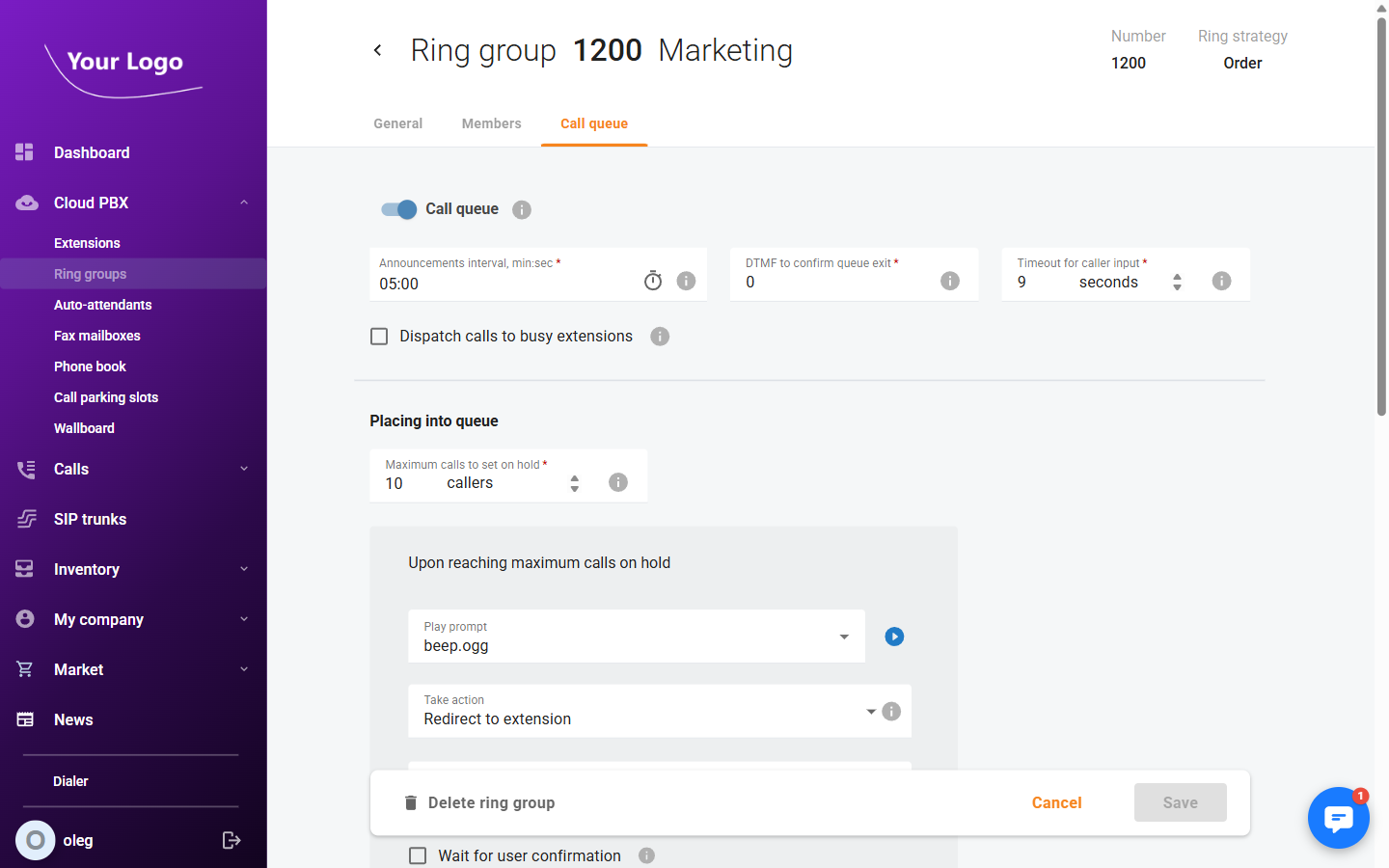

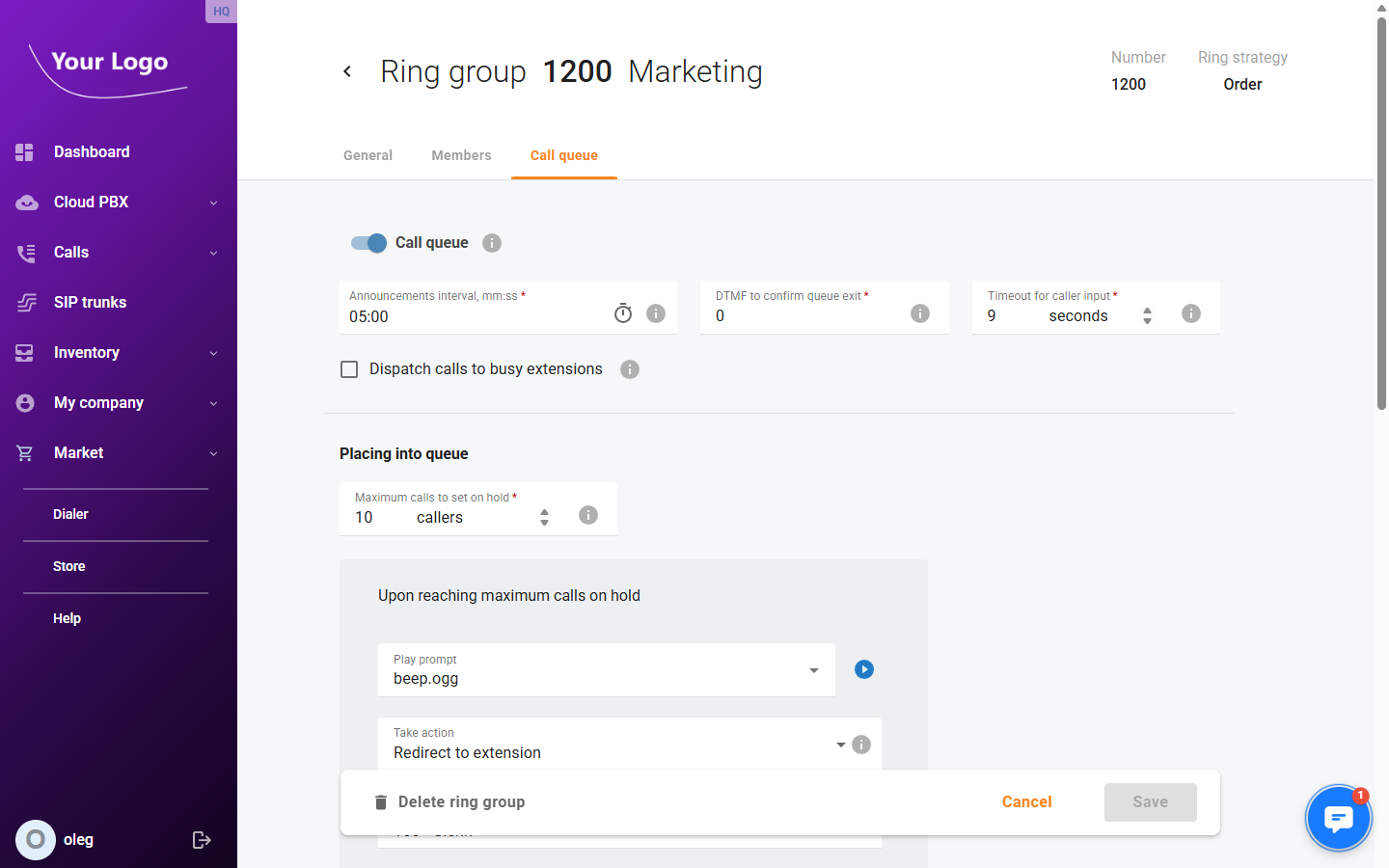

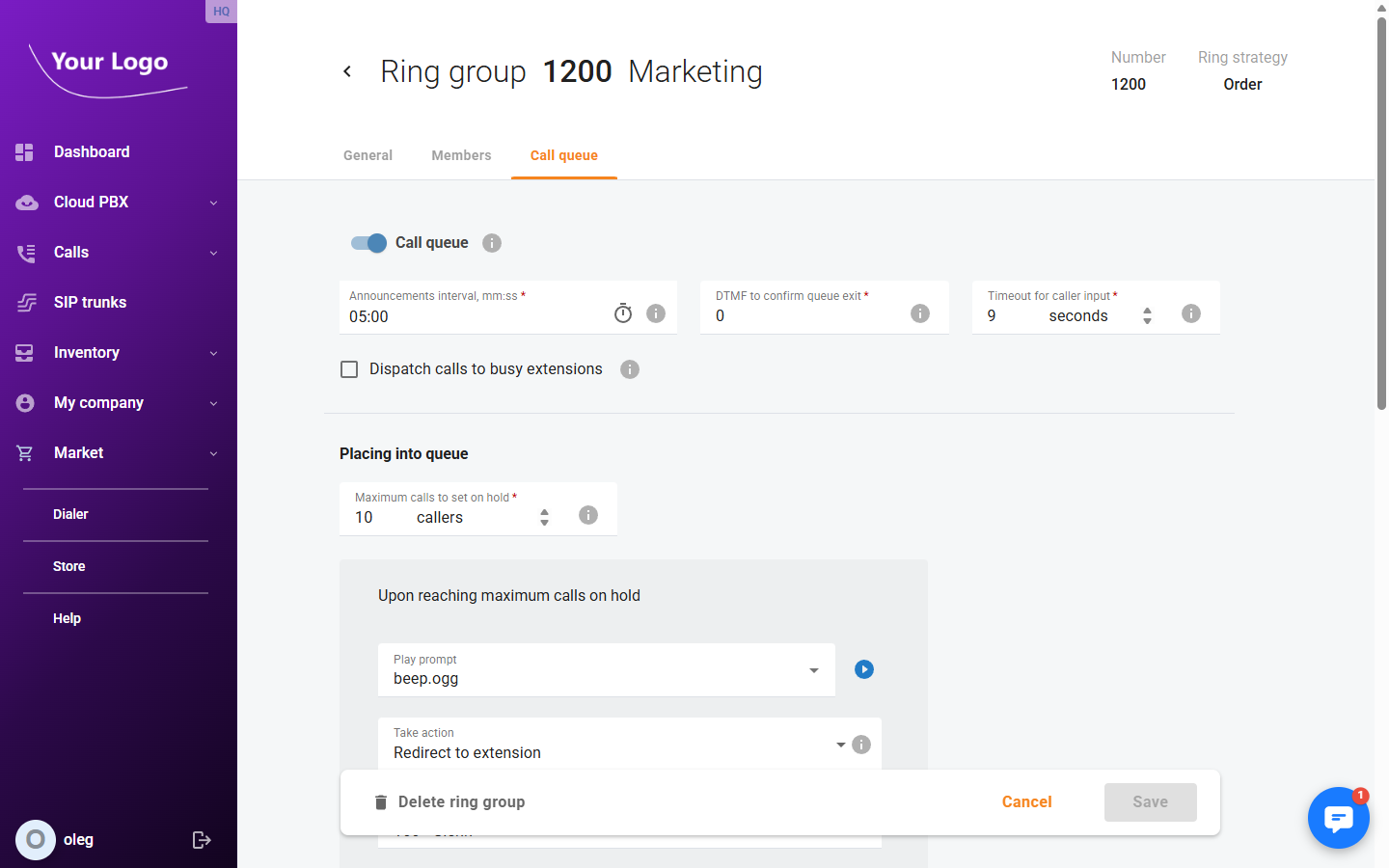

Call Queue Tab

Enable the Call queue toggle to place callers in a queue when all members are busy.

General queue settings:

Field	Description
Announcements interval, mm:ss*	How often the system plays queue position or wait-time announcements to the caller.
DTMF to confirm queue exit*	The DTMF key a caller presses to leave the queue voluntarily. Set to 0 to disable self-service exit.
Timeout for caller input*	Seconds the system waits for DTMF input before timing out.
Dispatch calls to busy extensions	If checked, the system will dispatch calls to extensions that are currently on another call.

Placing into queue:

Field	Description
Maximum calls to set on hold*	Maximum number of callers that can wait in the queue simultaneously.

When the queue is full, the Upon reaching maximum calls on hold settings determine what happens to additional callers:

Field	Description
Play prompt	Audio prompt played to the caller before the overflow action is taken.
Take action	What to do with the caller (e.g. Redirect to extension).
Extension*	Target extension for the redirect action (visible when Redirect to extension is selected).
Wait for user confirmation	If enabled, the receiving extension must press a key to accept the transferred call.

Waiting in queue:

Field	Description
Announce the caller's position in the queue	Play the caller's current position in the queue at each announcement interval.
Announce estimated wait time	Play the estimated time to answer at each announcement interval.
Play music on hold	Select the music-on-hold track played to queued callers.
Maximum waiting time, mm:ss*	Maximum time a caller can wait in the queue before the timeout action triggers.

When the maximum waiting time is reached, the When waiting time passes settings apply:

Field	Description
Play prompt	Audio prompt played before the timeout action.
Take action	What to do with the caller (e.g. Redirect to extension, None).
Wait for user confirmation	If enabled, the receiving extension must accept the transferred call.

Ringing operators:

Field	Description
Maximum ringing time	How long (in seconds) each agent's extension rings before the call moves on to the next agent.

When an agent does not answer within the maximum ringing time, the When ringing time passes settings apply:

Field	Description
Play prompt	Audio prompt played before the no-answer action.
Take action	What to do with the call when the ringing time expires.
Wait for user confirmation	If enabled, the next receiving extension must accept the transferred call.
